Startseite /Produkte/Thermopapier, das Rückspulenmaschine aufschlitzt/1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls

1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls

1 Satz
MOQ
Verhandlungsfähig
Preis
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Max. Format: 1400 mm
Max. Geschwindigkeit: 300 m/min
Maximaler Rückspulendurchmesser.: 300 mm
Max. Entspannungsschale.: 1200 Millimeter
Garantie: 1 Jahr
Anwendung: Faxrolle, Kassenrolle, Geldautomatenrolle, EKG-Rolle, POS-Rolle, Kassenrolle, MG Kraftpapierrolle
Hervorheben:

300mm Rewinding Diameter Slitting Rewinding Machine

,

1200mm Unwinding Diameter Paper Roll Slitter Rewinder

,

90-degree Vertical Lay-on Roller Thermal Paper Slitting Rewinding Machine
Grundinformation
Herkunftsort: China
Markenname: Ecoographix
Zertifizierung: ISO9000, ISO20001, CE
Modellnummer: ECOO 1400C
Zahlung und Versand AGB
Verpackung Informationen: Holzkiste
Lieferzeit: 35 Tage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 300 Stück pro Jahr
Produkt-Beschreibung
1400mm Thermal Paper Slitting Rewinding Machine
High-performance slitting and rewinding machine designed for fax rolls, cash register rolls, ATM rolls, ECG rolls, POS rolls, till rolls, and MG kraft paper rolls.
Technical Specifications
Parameter Value
Max. Rewinding Diameter 300mm
Min. Slitting Width 30mm
Max. Unwinding Diameter 1200mm
Max. Unwinding Width 1400mm
Max. Speed 300m/min
Unwinding Shaft 3" (76mm) air-expanding shaft
Rewinding Shaft 0.5", 1" (size customizable)
Total Power 5Kw
Voltage 380V/50Hz
Key Features
  • China's first 1400mm width thermal roll slitting machine
  • 55% higher small roll output compared to 900mm width machines
  • Shaftless hydraulic jumbo roll loading system
  • Photoelectric sensor or photocell for precise web guiding
  • 90-degree vertical lay-on roller for optimal performance
  • Banana roller prevents overlapping issues

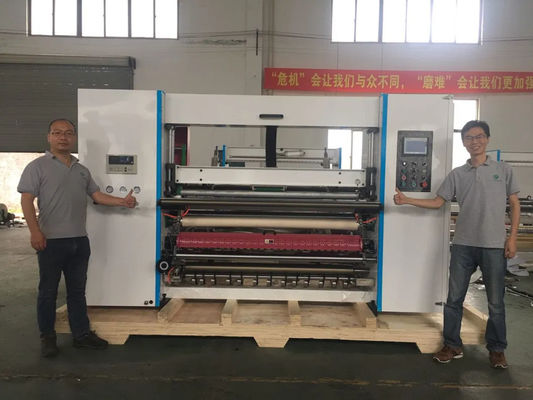

1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls 0
Machine Components
Unwinding Section: Shaftless unwind stand with hydraulic jumbo roll loading, fully automatic tension controller, 20kg/m² electromagnetic brake from Taiwan, photoelectric sensor or photocell for web guiding, and direction adjustable balancing roller.
Slitting Section: Upper circular knives fixed by screws and lower circular knives fixed by aluminum spacer for precision cutting, rotary encoder for automatic slit length metering.
Rewinding Section: Automatic tucker for tail tucking, 90° vertical lay-on roller with up/down movement capability, banana roller to prevent overlapping.
Control System: Siemens PLC with touch screen HMI, Yaskawa AC drive for Siemens master motor, Schneider low voltage electrical components.
Waste Removal: Edge waste blower through expulsion tube.
Optional Accessories
  • Safety guard
  • 4-corner emergency switches
  • Transmission belt
  • Blower and shredder
  • Safety fence
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls 1
About Ecoographix
With 7 years of industry experience, Ecoographix is a leading Chinese manufacturer providing comprehensive prepress and post-press solutions:
Prepress Equipment: CTP machines, flexo CTP machines, inks, developers, processors, CTP/CTCP plates, blankets.
Postpress Equipment: Die-cutting machines, automatic punching machines, book binding machines, carton erecting machines, paper cone cup machines, automatic folder gluers.
Visit us at: www.ecoographix.com
