4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size

1
MOQ
$55000
Preis
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Hervorheben:

4 Clamps Perfect Binder Machine

,

2300 Copies/Hour Book Binding Machine

,

450X320mm Binding Size PUR Binder
Grundinformation
Herkunftsort: China
Markenname: Ecoographix
Zertifizierung: CE, ISO
Modellnummer: ECOO TB505F
Dokumentieren: TBT50 5F.pdf
Zahlung und Versand AGB
Verpackung Informationen: Holzkiste
Lieferzeit: 30 Tage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 100 Sätze pro Jahr
Produkt-Beschreibung

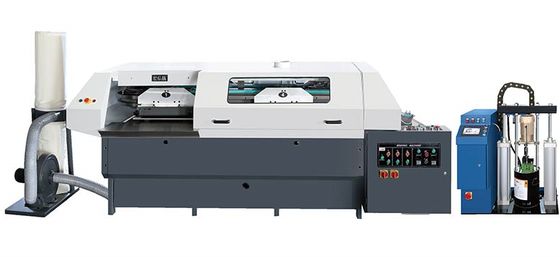

ECOO TB50/5F - 4 Clamp Perfect Binder Machine with EVA & PUR Gluing System
The ECOO TB50/5F is a high-performance 4-clamp PUR perfect binder designed for short to medium production runs, with a maximum mechanical speed of 2300 copies/hour. This advanced binding machine features stepless variable speed control, PLC programmable controller, independent temperature control, and overload protection for its dual glue pot system.
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 0
Key Technical Features
  • Precision metering pump with independent pressure control system and 2-way hose output
  • Multi-settings for temperature/motor rotating speed curve
  • Comprehensive alarm system for temperature limits, sensor damage, and heater damage
  • Advanced protection features including locked-rotor protection and intelligent fault locating
  • PUR adhesive technology offering toughness, softness, and excellent aging resistance
  • Produces smooth book cuts with flexible adhesive layers and clean edges
  • Excellent material adaptability for various paper types including coated papers (150-250g/m²)
Technical Specifications
Binding Size Max: 450*320mm; Min: 150*105mm
Binding Thickness 2-50mm
Binding Speed Max: 2000 Books/Hour
Cover Size Max: 640*450mm
Cover Weight Range Normal Paper: 81.4-302.4 gsm; Coated Paper: 104.7-348.9 gsm
Power Requirement 13Kw
Weight 2100Kg
Dimensions 3100*1300*1250mm
The machine features automatic adjustments for spine milling width, notching width, side glue width, cover guides, scoring width, and book block width between nipping plates. With stepless-speed regulation, PLC program control, PIO temperature control, and automatic detectors, it's ideal for flexible binding of small to medium book quantities.
Optional Features
PUR glue spraying device with back and side glue application 4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 1
Back Strip 4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 2
Automated Binding Process
The machine performs 10 automated procedures after manual book block feeding:
  1. Milling back (automatic adjustment)
  2. Opening groove
  3. Back glue coating
  4. Side mucus coating (automatic adjustment)
  5. Cover and book core composing (automatic adjustment)
  6. Cover impressing (automatic adjustment)
  7. Cover packing (automatic adjustment)
  8. Finished-product output (automatic adjustment)
  9. Book spine pressing
  10. Cooling to final product
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 3
Key Components and Features
Book Clip Structure
Dual springs provide stable grip and high pressure
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 4
Spine Milling and Notching Station
Integrated milling processes including back milling, precision milling, and rough milling with specialized slotting structure
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 5
Glue Station
Features include:
  • Side adhesive tank positioned to prevent thread formation
  • Reverse rotation of large rubber wheel for bubble-free gluing
  • Front/rear adhesive breakage functions to reduce waste
  • Dual overload protection for adhesive container
  • Quick-install movable glue container for easy EVA/PUR conversion
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 6
Nipping Station
Strong rigid nipping mechanism ensures precise cover-to-block alignment
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 7
Robust Ellipse Design
Features include:
  • H-shaped guide rails with three grooves and six-sided positioning
  • Dual guide rails with external cam structure for stable operation
  • Dual spring book clip structure
  • Integral die-cast rear clamping plate for durability
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 8
Factory and Certifications
4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 9 4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 10 4 Clamps Perfect Binder Machine with 2300 Copies/Hour Speed and 450X320mm Binding Size 11
