High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm

1 Satz
MOQ
To Be Negotiated
Preis
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Produktname: Hochgeschwindigkeitsmaschine zur UV-Flecken- und Gesamtbeschichtung von 9500 Blättern/Stunde
Max.Sheet-Größe: Max.Sheet-Größe
Maximale Beschichtungsgröße: 720x1050 mm
Blechdicke: 80-500gsm
Maximale Beschichtungsdicke: 0,025 mm
Beschichtungsmittel: Lack auf Wasserbasis oder UV-Lack
Hervorheben:

Max Coating Size 720x1050mm UV Varnishing Machine

,

Sheet Thickness 80-500gsm UV Coating Machine

,

Max Coating Thickness 0.025mm Spot and Overall Coating Machine
Grundinformation
Herkunftsort: China
Markenname: EcooGraphix
Zertifizierung: CE
Modellnummer: Ecoo SD-1060W
Zahlung und Versand AGB
Verpackung Informationen: Standard -Exportpaket
Lieferzeit: 45 Tage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 200 Sätze/Jahr
Produkt-Beschreibung
High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine

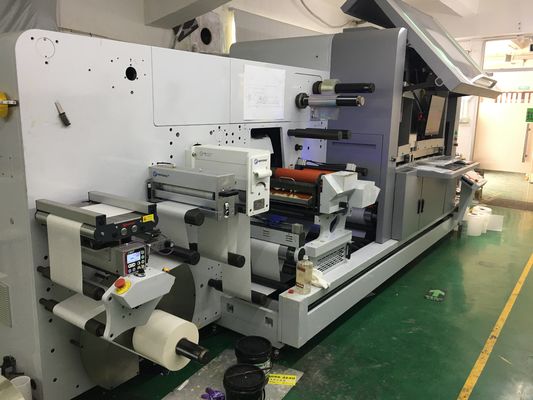

High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 0
Model: Ecoo SD-1060W
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 1
Product Parameters

The High Speed UV Spot and Overall Coating machine SD1060W features:

  • Upper-sway gripper-pass-sheet method enabling maximum speed of 9500 sheets/hour
  • UV curing system with Teflon conveying belt for higher speed and precise orientation
  • UV curing higher efficiency with lower power consumption
  • Suitable for both thick and thin papers (80-500gsm)
  • Capable of both full and partial UV varnish coating or water based varnish coating
Application Sample
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 2
Specification
Model Ecoo SD-1060W
Max.sheet size 730x1060mm
MIN.sheet size 310X406mm
Max.coating size 720x1050mm
Sheet thickness 80-500gsm
Max Coating Thickness 0.025mm
Coating Media Water Base Varnish or UV Varnish
Coating registration accuracy ±0.2mm
Production speed 9000 sheets/hour
Weight 8 Ton
Dimension 10460x2725x1930mm
Power Max 44KW
Floor Plan
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 3
Coating Rollers
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 4
Coating with Anilox Roller
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 5
Coating with Rubber roller
FAQ
Q: What about the Installation and after-sales technician support?

A: Our engineer can assist with installation and provide necessary training. The buyer is responsible for round air plane tickets, service charge, and local accommodation costs. We provide 24/7 support for any questions or issues.

With numerous CTP installations worldwide, including direct purchases from EcooGraphix China, our technical service team supports these installations remotely with regular onsite visits. Our satisfied customers benefit from robust quality, seamless remote service, thorough training, and maintenance.

FACTORY
High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 6 High Speed 9500 Sheets/hour UV Varnishing Machine with Max Coating Size 720x1050mm and Sheet Thickness 80-500gsm 7
